SPECIFICATIONS

Brand Name: NONE,BETAFPV

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Origin: Mainland China

Recommend Age: 14+y,6-12Y

Use: Vehicles & Remote Control Toys

The 2.2" Pavo20 Pro II redefines lightweight freestyle performance, now offering seamless compatibility with both the DJI O4 at 79g and O4 Pro at 107.7g. This next-generation model introduces the upgraded II Frame with a supported structure and 4-screw assembly for enhanced rigidity and easier building, alongside a new integrated RGB LED strip for improved visibility and style.

Engineered for cinematic agility, the Pavo20 Pro II pairs the explosive thrust of LAVA 1104 7200KV Brushless Motors and co-developed Gemfan 2218 3-Blade Props with an aerodynamic frame that delivers an 8–11% thrust boost. The O4 Air Unit Pro Bracket ensures vibration-free stability for perfectly smooth footage, while the ultra-light F4 2-3S 20A flight controller provides crisp digital performance. The Pavo20 Pro II is the ultimate whoop for pilots demanding professional freestyle performance.

Bullet Points

• Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.

• O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.

• Lightweight Powerhouse: Weighing only 107.7g (O4 Pro Version), this 2.2″ cinewhoop is the perfect gateway for DJI pilots to dive into FPV.

• Freestyle-Tuned Propulsion: The co-developed GF 2218 3-Blade Props and LAVA 1104 | 7200KV Brushless Motors offers unparalleled thrust, while the aerodynamic frame adds an 8–11% boost for aggressive maneuvers.

• Cinematic Stability: The integrated O4 Air Unit Pro Bracket gurantees every frame you captured is perfect.

• Flight Controller: The ultra-light F4 2-3S 20A AIO FC V1 (5.92g) is engineered for crisp digital performance, offering enhanced computing power and rapid response for precise freestyle control.

• New RGB LED Strip: Enhanced visibility for in-flight orientation and a striking visual presence.

• ND Filter Ready: ND/UV filters for O4 Pro let you master any lighting condition.

• Plug-&-Play Tuned: Pre-optimized PIDs for O4 & O4 Pro. Select & fly via OSD.

Specifications

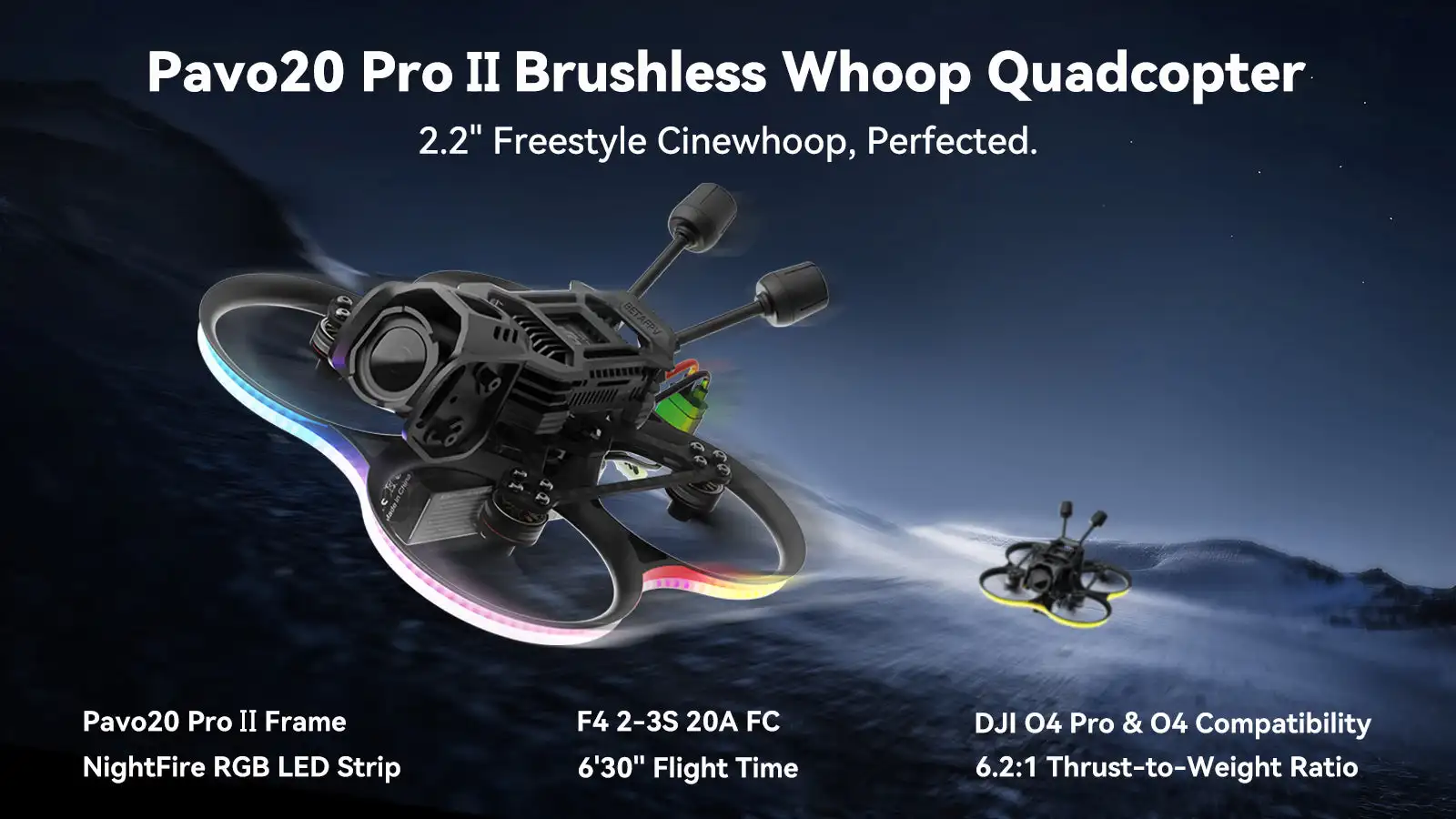

• Item: Pavo20 Pro II Brushless Whoop Quadcopter

• Wheelbase: 93.9mm

• FC: F4 2-3S 20A AIO FC V1

• Frame: Pavo20 Pro II Brushless Frame

• Motor: LAVA Series 1104 | 7200KV Brushless Motors

• Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)

• Flight Time: 6'30'' (with LAVA 3S 550mAh Battery)

• RX Version: Serial ELRS, DJI SBUS

• HD VTX Bracket: O4 Air Unit Pro Bracket, O4 Air Unit Bracket II

• Weight: 65.2g (PNP Version), 107.7g (O4 Pro included)

• Battery Connector: XT30

• Battery Slot: 20mm * unlimited height

• Strip: NightFire RGB LED Strip

• Supported VTX: DJI O4 Air Unit Pro, DJI O4 Air Unit
